Operating Control Panel Tobacco Cutter For Tobacco Processing Line

Name: Operating Control Panel Tobacco Cutter For Tobacco Processing Line
Brand: China Tobacco
Price: 1 USD

Best Operating Control Panel Tobacco Cutter For Tobacco Processing Line wholesale

Brand Name : China Tobacco

Model Number : SQ21 SQ31

Certification : ISO9001，GJB9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 sets per month

Delivery Time : 20 work days

After-sales service provided : Engineers available to service machinery overseas

Capacity : 750 ~ 9600 Kg/h

Contact Now

High Quality SQ21 / SQ31 Series of Tobacco Cutter for Tobacco Processing Line

Application:

This product is used for cutting lamina or stem into cut-lamina or cut-stem with required width. The cutting width can be easily adjustable within the range of 0.1 - 3 mm.

Features:

The knife drum and conveying chain are driven respectively by high-performance AC spindle motor and servomotor and adoption of closed-loop vector drive, AC servo control and field-bus technologies, which make precise and fast control of speeds ratio between knife drum and conveying chain and features low inertia, quick response, high stability, and high control precision. As the result, the adjustment of cutting width can be more convenient, more simplified more precise and more reliable.
Lifting of upper mouthpiece and upper conveying chain is driven by pneumatic. Single pneumatic cylinder and mechanical synchronizing mechanism for maintaining the pressure at both ends of the upper mouthpiece, which features simple structure, reliable running, low noise and non-pollution.
Pressure of mouthpiece is regulated by electrically-controlled pneumatic proportional reducing valve, through the displaying device, the compression pressure of mouthpiece pressure can be adjusted precisely, and centralized control can be achieved easily.
The elevating of upper mouthpiece and upper conveying is through crank-guided swing mechanism which can keep the distance constant between moving edge of the upper mouthpiece and the rotating track of the cutting knifes blade. As the result, cutting width is even.
Overload protection device set on sprocket for driving upper and lower conveying chains. In case of overload, safety pin cuts off and the cutter will be stopped to ensure the safety of the cutter.
Knife advance adopts worm gear, worm, gear and connection rod swing mechanism. Knife advancement is adjustable.
Grinding reciprocating speed, grinding wheel advance and rotary speed of knife drum to be in direct ratio.
Grinding wheel advancement is adjustable.
Operating control panel adopting movable hanging type touch screen for convenient operation.

Technical Specifications:

Model	Cutting Width (b), mm	Rated Capacity Kg/h	Rotary Speed of Knife Drum, r/m	Mouthpiece openness, mm	Mouthpiece width, mm
Lamina Cutter
NQ411	0.3 - 1.5	800	150 - 600	15 - 50	300
SQ311, SQ211B	0.3 - 1.5	2400	150 - 600	20 - 80	400
SQ313, SQ213B	0.3 - 1.5	4000	150 - 660	65 - 125	400
SQ315, SQ215B	0.3 - 1.5	4800	150 - 660	65 - 125	400
SQ317, SQ217B	0.3 - 1.5	6400	150 - 660	65 - 125	400
SQ219C	0.3 - 1.5	9600	150 - 660	100 - 160	510
Stem Cutter
SQ312, SQ212B	0.1 - 0.5	750	150 - 600	20 - 80	400
SQ314, SQ214B	0.1 - 0.5	1000	150 - 660	65 - 125	400
SQ316, SQ216B	0.1 - 0.5	1250	150 - 660	65 - 125	400
SQ318, SQ218B	0.1 - 0.5	1500	150 - 660	100- 160	400
SQ218C	0.1 - 0.5	2000	150 - 600	100 - 160	510

Product Tags:

cigarette packing machines

cigarette manufacturing machine

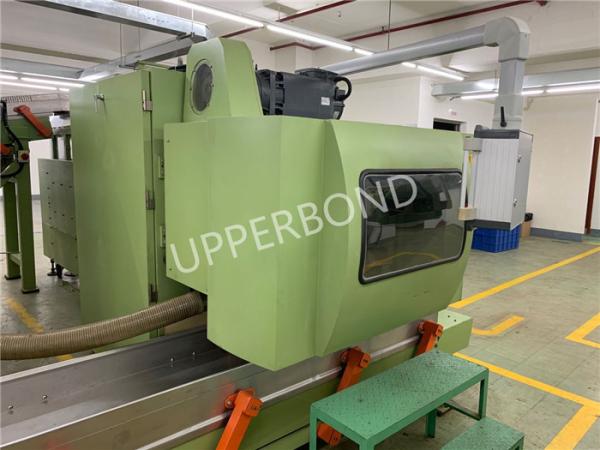

Operating Control Panel Tobacco Cutter For Tobacco Processing Line Images
